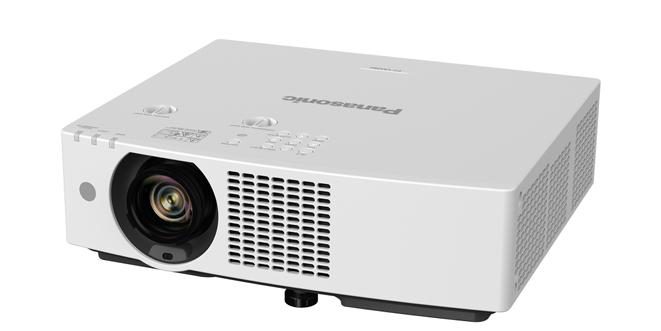

The Panasonic PT-VMZ72EJ WUXGA laser projector is designed to deliver bright, detailed and reliable projection in offices, classrooms, meeting rooms and other professional environments. With up to 7300 lumens of brightness, WUXGA (1920 × 1200) resolution and an efficient LCD optical engine, the PT-VMZ72EJ produces clear, vibrant images even in brightly lit spaces. Its compact design and low-maintenance laser light source make it well suited to installations where image quality, flexibility and ease of use are important.
The projector’s WUXGA 1920 × 1200 resolution provides sharp text and detailed images, while support for widescreen content, including 21:9 video conferencing layouts, allows compatible content to be displayed at its original aspect ratio.
Quiet Operation and Compact Design
The PT-VMZ72EJ is designed for professional spaces where projector noise can be distracting. Its compact form is available in black or white and is designed to integrate discreetly into offices, classrooms, museums and other professional environments.
Flexible Installation and Image Adjustment
Installation is simplified with a 1.6x optical zoom and lens shift, providing greater flexibility when positioning the projector. The optical zoom offers a throw ratio of 1.09–1.77:1, while lens shift supports vertical (+44%) and horizontal (±20%) adjustment for off-axis and high-mounted installations. Supported screen sizes range from approximately 30 to 300 inches.
Additional installation tools include Digital Zoom Extender, Digital Image Shift, Angle Monitor, Grid Adjustment and 6-Point Screen Adjustment. The built-in geometric adjustment functions also support projection onto curved, cylindrical, spherical and irregular surfaces, providing installers with additional flexibility when working with challenging environments.
4K Signal Support and DIGITAL LINK Connectivity
The Panasonic PT-VMZ72EJ supports 4K signal input via HDMI and DIGITAL LINK, making it suitable for integration into modern AV systems. Its 4K DIGITAL LINK connection, based on HDBaseT technology, allows video, audio and control signals to be transmitted over a single CAT 5e LAN cable, helping simplify cabling and installation across offices, schools and entertainment environments.
For system integration and remote management, the projector supports a range of control protocols including IPv6, Art-Net, DMX, PJLink Class 2, Crestron Connected V2, Crestron XiO Cloud and Extron XTP. An emulation function is also provided for compatibility with legacy management software.
Simplified Fleet Management
For installations using multiple projectors, the data cloning function allows main projector settings and saved adjustment data to be copied to additional identical projectors via LAN or USB memory devices. Up to 99 sub-projectors can be configured via LAN, helping simplify deployment across larger installations.
The PT-VMZ72EJ also includes Quick Startup, allowing projection to begin in approximately one second, as well as Direct Off functionality. Built-in scheduling can automate functions such as power on/off, shutter activation and input selection, while HDMI CEC compatibility can simplify control when connecting compatible source equipment.
Wireless Presentation and Content Sharing
The projector supports wireless content sharing from compatible smartphones and laptops through Panasonic’s wireless applications. The optional PressIT Wireless Presentation System provides button-based screen sharing and presenter switching, with the receiver able to draw power from the projector’s DC 5 V/2 A USB port. PressIT is sold separately and availability may vary by region.
Remote Monitoring and Control
For larger deployments, the PT-VMZ72EJ is compatible with Panasonic Multi Monitoring & Control Software, which can manage up to 2048 display devices from a remote PC over LAN. The software provides functions including device status monitoring, control, playlist delivery, playback scheduling and system map visualisation.
The Panasonic PT-VMZ72EJ combines up to 7300-lumen brightness, WUXGA resolution, 4K signal support, flexible installation features, DIGITAL LINK connectivity, wireless presentation options and comprehensive network management in a compact professional laser projector. It is a strong solution for offices, education, meeting spaces, museums and other environments requiring bright, detailed and dependable projection.
Other Features
- Shutter function and Auto Image Rotation function
- Audible remote control feedback for projector on/off
- Security slot and customizable startup logo
- USB port for DC 5 V/2 A power supply data transfer, firmware updates and optional wireless module
- Compatible with the Multiple PJ Firmware Batch Update Tool
- Presentation Support System
- Multi-Screen Support System
- Multi-Unit Brightness and Color Control
- DICOM Simulation Mode
Bright, Detailed Projection for Professional Environments
With brightness of up to 7300 lumens, the Panasonic PT-VMZ72EJ is designed to maintain clear and vibrant images without requiring rooms to be completely darkened. Dynamic Contrast provides a contrast ratio of up to 3,000,000:1 by adjusting light output according to each scene, helping produce deeper blacks, brighter whites and greater image definition. Daylight View Basic further optimises image visibility by detecting ambient light and adjusting image characteristics to suit the room.
| Features | |
|---|---|
| Brightness (Normal) | 7300 ANSI Lumens |
| Brightness Category | 7K-9999 Lumens |
| Laser | Yes |
| Native resolution | 1920 x 1200 |
| Aspect ratio | 16:10 (WUXGA) |
| Contrast ratio (typical) | 5000000:1 |
| Technology | 3LCD |
| Lamp Life | 20000 Hours |
| Lens Throw Ratio | 1.09–1.77:1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Colour | White |
| Dimensions W x D x H | 399 x 115 x 348 mm |
| Weight | 7.0 Kg |
