PT-VMZ6STEJ Projector

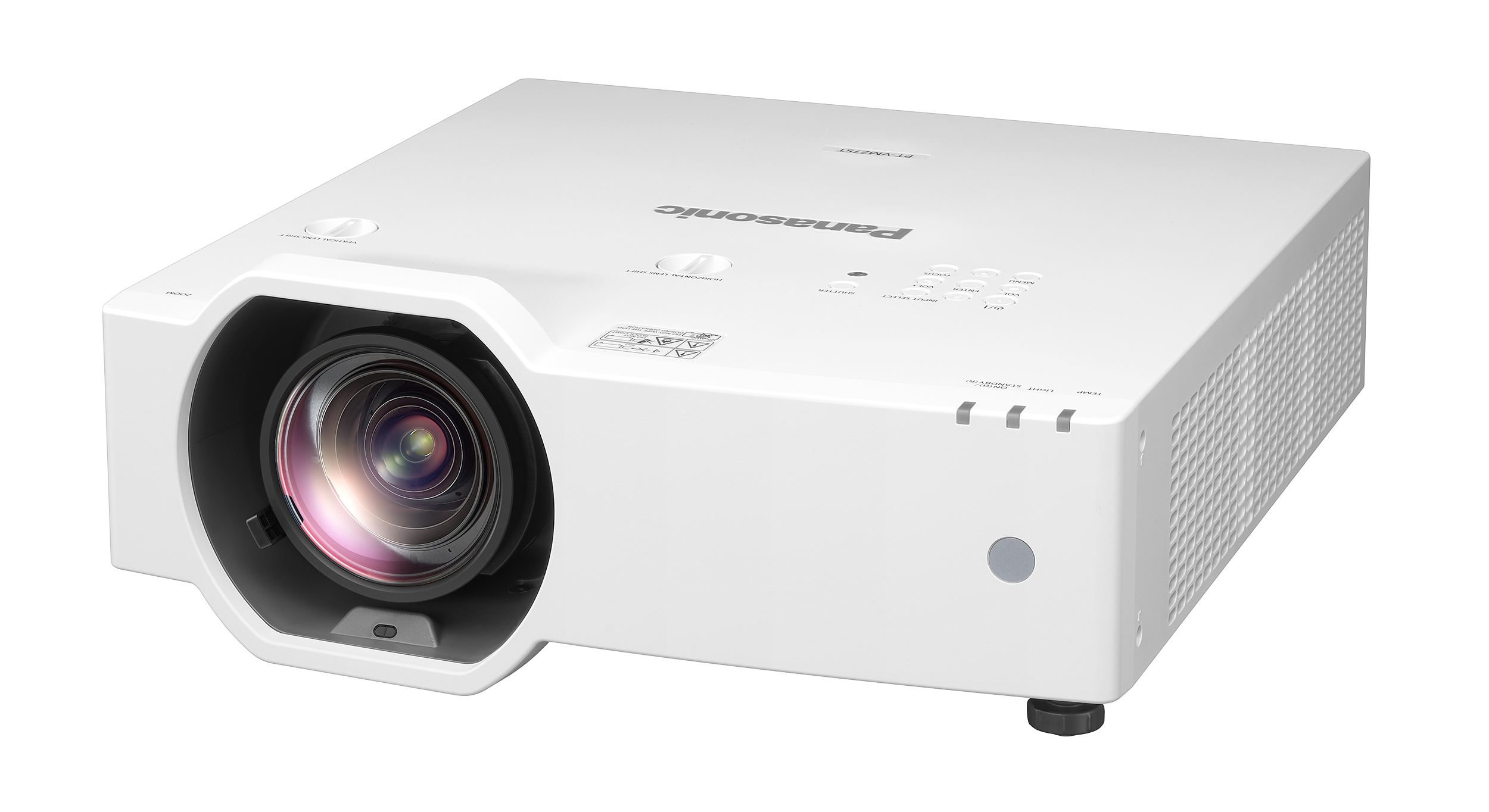

Panasonic PT-VMZ6STEJ WUXGA 6200 ANSI Lumens Short-Throw Laser Projector

The Panasonic PT-VMZ6STEJ is a WUXGA short-throw laser projector that delivers bright, flexible and reliable projection for professional environments including offices, classrooms, museums, golf simulators and AV installations. Combining 6200 ANSI lumens of brightness, WUXGA (1920 x 1200) resolution and advanced installation features, the VMZ7ST Series is designed to provide high-quality projection in spaces where flexibility, image quality and ease of installation are important.

With a 0.797–1.01:1 short-throw ratio, the projector can create images up to 250 inches while helping reduce shadows and glare in front of the screen. Powered focus, 1.2x optical zoom and +50% vertical / ±20% horizontal lens shift provide greater flexibility when installing the projector in challenging environments.

Bright WUXGA Projection

Delivering 6200 ANSI lumens and WUXGA 1920 x 1200 resolution, the VMZ7ST Series produces bright, detailed images suitable for professional presentation, education and display applications. Advanced Dynamic Contrast, Daylight View Basic and RGBMYC colour adjustment technologies help optimise image quality, contrast and colour reproduction in a variety of lighting conditions.

Flexible Installation and Image Correction

Designed for flexible short-throw projector installation, the VMZ7ST Series incorporates Angle Monitor, 8-Point Screen Adjustment, H/V Keystone Correction, Free Grid and geometric correction tools that simplify image alignment and setup. Digital Zoom Extender and Digital Image Shift provide additional installation flexibility where conventional projector positioning may not be possible.

4K Input and DIGITAL LINK Connectivity

The projector supports 4K signal input via HDMI and DIGITAL LINK. Based on HDBaseT technology, 4K DIGITAL LINK allows video, audio and control signals to be transmitted over a single CAT 5e LAN cable, helping simplify cabling and installation requirements in professional AV environments.

Incoming 4K content is converted to the projector’s native 1920 x 1200 WUXGA resolution for display.

Long-Life Laser Light Source and Eco-Friendly Design

The 20,000-hour laser light source helps reduce maintenance requirements compared with traditional lamp-based projectors. A long-life ECO Filter further supports low-maintenance operation, while approximately 56% recycled resins are used within the main projector body to help reduce environmental impact.

Professional Network Management and Control

LAN connectivity supports a range of professional control and management protocols, including PJLink, Crestron Connected, Crestron XiO Cloud, Extron XTP, Art-Net and DMX, enabling integration into professional AV and networked control environments.

A built-in data cloning function allows settings and configuration data to be copied to up to 99 identical projectors, helping simplify setup and deployment across larger multi-projector installations.

The Panasonic VMZ7ST Series combines 6200 ANSI lumens of brightness, WUXGA resolution, short-throw projection, 4K signal support, DIGITAL LINK connectivity, flexible installation features and long-life laser technology in a compact professional projector. It is well suited to classrooms, offices, museums, golf simulators and professional AV environments requiring bright, detailed and flexible large-format projection.

Other Features

• Supports widescreen 21:9 and 27:9 input signals
• Wireless projection with optional AJ-WM50 Series Wireless Module
• Shutter function and Auto Image Rotation function
• Quick On/Quick Off and Direct Power Off
• Audible remote control feedback for projector on/off
• Security slot and customizable startup logo
• USB port for DC 5 V/2 A power supply data transfer and optional wireless module
• Compatible with the Multiple PJ Firmware Batch Update Tool
• Presentation Support System
• Multi-Screen Support System
• Multi-Unit Brightness and Color Control
• DICOM Simulation Mode
